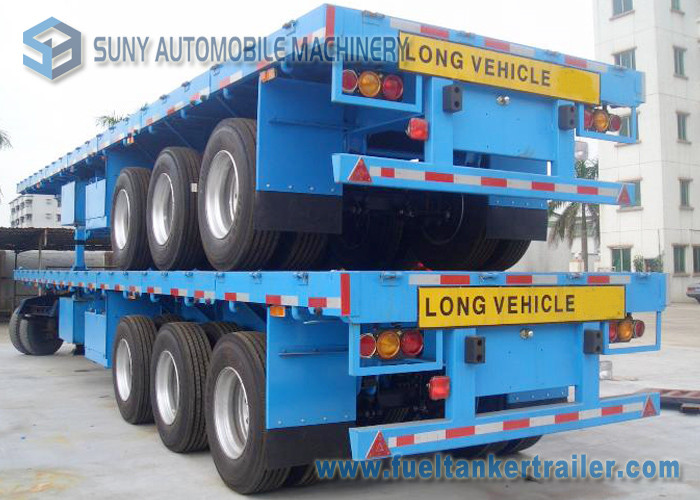

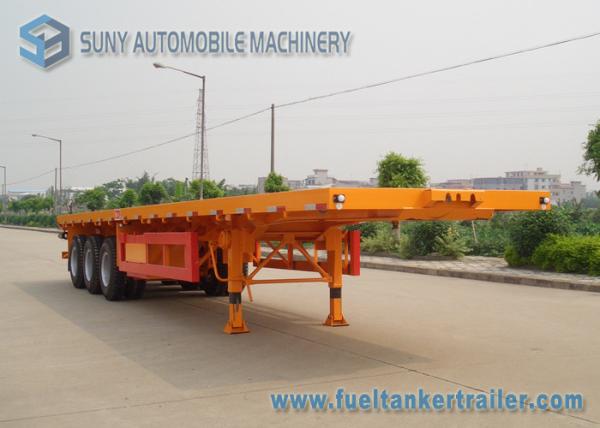

40ft Container Flatbed Semi Trailer , 3 Axles 45T Flatbed Utility
Trailer
Optional :
45 `ft or 53 `ft Container Flat Bed Semi Trialer
2 Axles , 4 Axles
FUWA Brand , BPW Brand , YORK Brand ,etc.
WABCO Brake System , FUWA 28 T legs or JOST Legs.
Semi trailer is our company's main product . We configure Grid type
semi trailer , low bed semi trailer , container semi trailer , flat
bed semi trailer , LPG tank semi trailer , fuel tank semi trailer ,
water tanker semi trailer , fecal suction semi trailer , sewage
suction semi trailer , compactor garbage semi trailer , van semi
trailer, box semi trailer , water tank semi trailer , bitumen semi
trailer , bulk cement semi trailer , dump semi trailer , chemical
tank semi trailer and etc . We produce tank semi trailer with
plastic lining , aluminum tank , aluminum alloy tank , rotational
molding , carbon steel , stainless steel , production according to
the customer's requirement .
DIMENSIONS & WEIGHT |
Vehicle Dimensions | 12500 * 2490 * 1560 mm |
Tare Weight | Approx.7100 kg |
Payload | 50000 kg |
SPECIFICATION |
Chassis | Heavy duty and extra durability designed Fabricated I - Beam - 345
MPa welded by automatic Submerged-Arc processes . Main beam height
is 500 mm , Upper plate is 14 mm , lower plate is 16 mm ,middle is 8 mm . 3 mm diamond steel plate |
Axle | 3 axles |
FUWA brand 13 T |
Suspension | mechanical with 10-piece leaf spring |
King Pin | 2.0’’ or 3.5’’ traction pin JOST brand (bolts type) |
Landing Gear | 28 T |
Wheel Rim | 9.0R22.5 10 stud steel rim 13 pieces |
Tyre | 12R22.5 Triangle brand, 13 pieces |
Braking System | WABCO Four double and two single chamber Without ABS. |
Electric | International standard 24 v circuit 7-pin ISO socket ; Tail lamp
with turn signal , brake light & reflector , side lamp etc . One
set 6-core standard Cable . |
Light | LED brand , Front marker lamp front corner marker lamp is red , Reflector lamp
is white Side marker lamp Orange Rear lamp Red Turn signal lamp Orange |
Container Twist Locks | 12 pieces |
Tools box | 1 piece |
Painting | Sand blasting processing clean rust 1 coat of anticorrosive primer , 2 coats of finish urethane paint color at customer’s choose. |

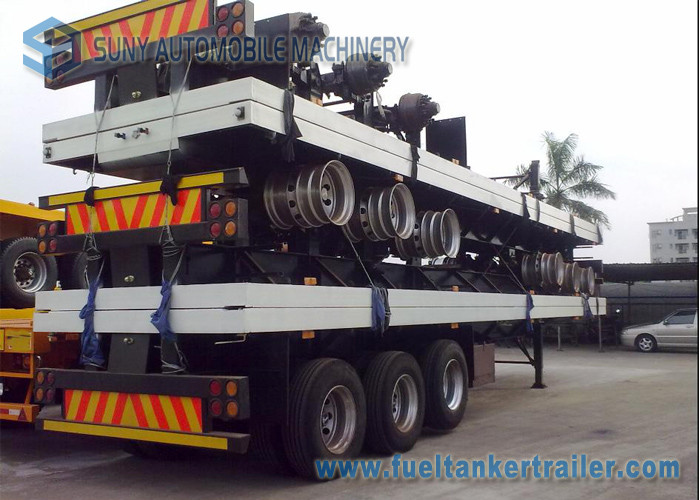

Packing | Cut rear part of trailer about 700 mm , load it in 40HQ container , fit it by screw in destination . One container carry two units . |
