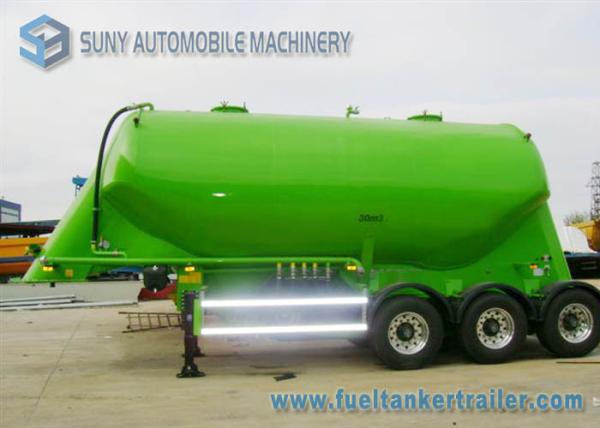

30 m3 Conoid Dry Bulk Tank Trailer 3 Axles Aluminum Cement Semi
Trailer
Description & Applications:
The dry bulk cement tank transportation semi trailer, the main part
of the running gear system, dry bulk storage tanker, pneumatic
piping system, unloading devices, etc. Large bulk cement transport
semi trailer is suitable for fly ash, cement, lime powder, mineral
powder, granular base, flour and other grain size is not more than
0.1mm powder dry bulk transportation.
1, the dry bulk tanker can be used straight or V shape or conoid
fluidized bed optimization of the internal and external structure,
with a low center of gravity, the volume of large and other
characteristics.
2, technical indicators: work pressure under the condition of
0.2MPA, the discharging speed is 1.2~1.5T/MIN, the residual rate ≤
2 ‰. Under certain conditions, the discharge height ≥ 25M.
3, large bulk cement transport semi trailer features: can be
independent of warehouse storage, loading of different powder
materials, unloading speed, low residual rate, high safety
performance, easy to operate.
Competitive Advantage:
We can be completely customized all different truck and trailer
according to customer needs; with advanced design concept; the
production process and the first class process, as well as
services; competitive prices.
Specifications:
3 axle with a lifting axle 30 m3 Dry Bulk Cement Tanker Trailer
Model | SY9330GLFC 3 axle 30 m3 Dry Bulk Cement Tanker Trailer |
Dimensions | Overall dimensions | 12600*2500*4000 mm (L*W*H) without the air compressor space. |
Volume | 30 m3 = 30000 Liters |
Weights | GVW | 47800 kg |
Kerb weight | 11800 kg |
Rated payload | 36000 kg |
Tanker |
Model | Self-bearing mild-steel cylindrically shaped tank with low centre
of gravity and 2 bottom discharge cones (hoppers) |
Test pressure | 3 bar |
Max. working pressure | 2 bar |
Working temperature | (-20°) to 50° |
Thickness | 5 mm |
Compartments | The tank is divided in 1 compartment |
Tank top accessories | 2 manholes DN500 with safety valve with hinged and swivel quick
release lids Walkway with collapsible handrail and folding ladder |
Discharge equipment | 2 outlet cones of 850mm diameter. An aeration pad is mounted in
each discharge hopper |
Discharge possibilities | Dentra discharge opening on the 2 hoppers diameter 200mm. Material
outlets of 100mm diameter with manual valves, lead out together to
discharge pipe |
Air line and aeration system | Air line on left or right hand side with 2 pressure gauges.
Pressure air to be connected from compressor mounted on truck |
Running Gear | 3x12T BPW / FUWA axles |
Leaf spring 6sets |
11R22.5 12-PCS with rims (different brand opting) |
JOST C200 2.0" kingpin (50#) opting, 3.5”(90#) |
1 pair . JOST |
Suspension | Mechanical Spring Suspension. Opting air suspension |
Braking system | WABCO ABS |
Electrical system | Complete electrical system with 7-socket |
Painting | All steel parts are steel blasted before painting |
primer |
Tanker and chassis is painted according customer's wish |
Accessories | Aluminum side protection |
PVC hose carrier on left/right side |
PVC mudguards |
Toolbox |
Compressor specification | BDW-10/2 (opting) |
Power unit | 4100P10 (opting) |
