2 ) LPG tank Designing pressure:0.7~2.16Mpa Designing temperature:500C

3 ) The various types LPG tank is researched and manufactured by stress analysis design and has obvious advantage of large capacity.light weight and high efficiency.

4 ) We inspect the quality of lpg tank product strictly,ensure that A and B type of welding seam pass the examination of level two radiographic test,C and D type of welding seam pass the examination of level one radiographic test.

5 ) The anticorrosion coating of LPG tank adopt the following process, sandblast, spray painting ,purging and so on.

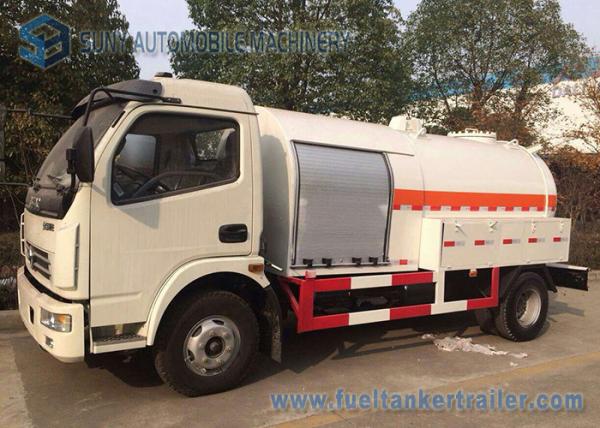

5500L LPG tank truck specification:

Design and production standard 1.TSG R0005-2011<Supervision regulation on safety technology for stationary pressure vessel> 2.JB/T19905-2005 < LPG transported tank truck>, GB150 1~4-2011<pressure vessels>
LPG tank truck specification
Filling gas		LPG
Tank capacity		5500L
Loading weight		2310kg
Chassis		Dongfeng DFAC
Overall dimension		5900*2045*2210
Cab		Dongfeng DFAC single row cab, with power steering. Electronic flameout, left hand drive, optional:Right hand drive
Wheelbase		3300mm-3800mm
Gear box		5-speed
Bridge	Front axle	2T
	Rear axle	4T
Enging	Manufacture	Chaoyang engine CY4102
	Horse power	95-120hp
	Displacement	3856L
Tire		7.00-20(6+1 )
LPG tank specification
Tank material		Q345R
Tank Designed thickness	End cover	9.35mm
	Tank body	9.37mm
Designed pressure		1.61Mpa
Testing water pressure		2.10MPa
Air tight test pressure		2.61Mpa
Heat treatment		Wholly get rid of stress
Rust thickness		1mm
Use Years		Ten years
equipment		1.double tool box 2.double valve box 3.double Emergency Cut-off Valve 4.single pipe liquid out 5.both side loading and unloading 6.with LPG dispenser,LPG pump,Liquid level meter,Pressure meter,Safe valve,Thermometer,Liquid phase,Gas phase,Sewage draining exit

Hubei Suny Automobile And Machinery Co., Ltd is a professional company who deal in different kinds of special vehicles, trailers, construction machinery and airport special associated equipment. It is approved by China Business departments and with the qualification of independent legal person and independent import & export rights.

It is the important strategic partner for many famous special vehicle manufacturers in China. The main product achieve to more than 300 types in 20 series. We uphold the tenet----quality first, safety first, attention to details and keep the promise to develop the market domestic and also abroad vigorously.

Now the trade scale of the company growing speedily. We keep the customers demand as direction and customers satisfactory as target. We got big support and trust from customers all over the world by our quality goods, professional and service and excellent reputation. Meanwhile, we will make more continuous effort on innovation to forge ahead.

We treat the technology as the core, the quality as the life, the customer as the god and provide the highest cost-performance product and meticulous pre-sale/after sale service to feedback all the customers.

We sincerely hope we can walk with arms linked with you to get eciprocity and mutual benefit together!
